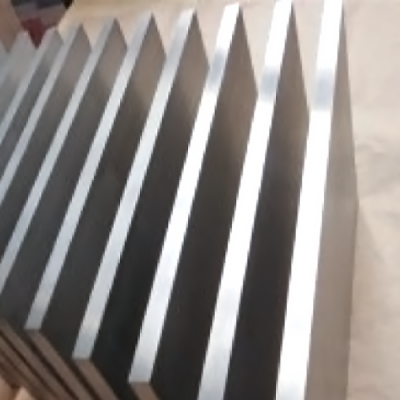

LX52 Pipe Line Plate X52
Introduction
Pipe line plate X52 is a high-performance alloy steel plate, mainly made of low-carbon high-strength steel, and its main chemical composition includes optimized manganese, silicon and other elements. It is widely used in oil and gas pipelines, chemical reactors, power plant boiler pipelines, offshore platform structures, etc.
Advantages
Good mechanical properties
The yield strength (359-531 MPa) and tensile strength (455-758 MPa) show that pipe line plate X52 has good mechanical properties and can withstand large external pressure and tensile force, ensuring the safety and stability of the pipeline system.
Corrosion resistance
The maximum sulfur content (0.015%) is low, and the low sulfur content reduces the chance of steel reacting with sulfides and prolongs the service life. In addition, the addition of alloying elements such as manganese helps to improve the corrosion resistance of steel, especially in moist and corrosive gas (such as sulfur dioxide) environments.
High temperature resistance
Manganese, silicon, chromium and other elements are added to pipe line plate X52. In particular, manganese can enhance the oxidation resistance of steel and avoid oxidation and rust in high temperature environments. The alloying elements improve the grain strength and creep resistance of steel, and it is not easy to deform under high temperature conditions.
Good ductility
Pipe line plate X52has good plasticity and ductility. The manganese content and low carbon content (maximum 0.24%) in the steel provide good plasticity for the steel. The low carbon content reduces the brittleness of the steel. The manganese content (1.4%) helps to strengthen the crystal structure of the steel, and the steel can still maintain good toughness and ductility at high temperatures.
Applications
1. Oil and gas industry
Oil pipelines and natural gas pipelines, reactor, tank, pump and valve housings in refineries.
2. Chemical industry
Chemical reactor housings, pipeline systems for transporting chemicals such as acids, alkalis, and salts.
3. Power industry
Boiler housings and pipelines, cooling system pipelines.
4. Metallurgical industry
Smelting furnace and heating furnace housings, molten metal transport pipelines.
5. Shipbuilding and marine engineering
Corrosion-resistant housings of ships, structural components of offshore drilling platforms.
6. Food and pharmaceutical industry
Transmission pipelines for food and beverages, housings for pharmaceutical equipment.
7. Transportation industry
Pipelines for transporting fuels, lubricants, and other substances, manufacturing key components in automobile engines and exhaust systems.
Characteristics of Pipe Line Plate X52
Pipe Line Plate X52 Chemical Composition:
|
Grade |
C Max |
Mn Max |
P Max |
S Max |
|
API Spec 5L PSL2 X52 (L360) |
0.24 |
1.4 |
0.025 |
0.015 |
Pipe Line Plate X52 Mechanical Property:
|
Grade |
Yield Strength(MPa) |
Tensile Strength(MPa) |
% Elongation |
|
API Spec 5L PSL2 X52 (L360) |
359-531 |
455-758 |
a |
FAQ
Q: What are the advantages of pipe line plate X52 compared with ordinary carbon steel?
A: Compared with ordinary carbon steel, pipe line plate X52 has higher strength, better corrosion resistance and stronger high temperature resistance, and is suitable for more demanding industrial environments.
Q: What is the hardness of pipe line plate X52?
A: The hardness of pipe line plate X52 is usually estimated based on its yield strength and tensile strength, which is approximately between HB200-250. The specific hardness depends on the specific processing process of the plate.
Q: Is pipe line plate X52 suitable for marine engineering?
A: Yes, the corrosion resistance of pipe line plate X52 is particularly suitable for offshore oil platforms and other marine engineering equipment, which can effectively prevent corrosion of structures caused by seawater.
Q: Can pipe line plate X52 be welded?
A: pipe line plate X52 can be welded, but suitable welding process and filler materials are required to ensure the strength and corrosion resistance of the welding area.
Q: Can pipe line plate X52 be used in low temperature environment?
A: Although pipe line plate X52 is resistant to high temperatures, its performance decreases slightly in low temperature environments. Generally, pipe line plate X52 is suitable for medium to high temperature industrial environments, while other materials need to be considered for extremely low temperature applications.
Q: What is the chemical stability of LX52 pipe line plate X52?
A: Pipe line plate X52 shows strong stability when facing chemicals such as acids, alkalis, and salts, and can maintain its performance in many harsh chemical environments.
Q: How much external pressure can pipe line plate X52 withstand?
A: Pipe line plate X52 can withstand external pressures up to 200 MPa and is suitable for high-pressure pipeline systems, such as oil and gas transmission pipelines.
Q: Does pipe line plate X52 require special maintenance?
A: The maintenance of pipe line plate X52 mainly depends on regular inspection of its corrosion resistance and rust prevention measures, especially in marine and chemical environments, and surface protection treatment is required when necessary.
Q: What is the production standard of pipe line plate X52?
A: Pipe line plate X52 usually follow relevant international and domestic standards, such as ASTM, GB, etc., to ensure that their quality and performance meet the needs of industrial applications.
Q: What is the thickness range of pipe line plate X52?
A: The thickness of pipe line plate X52 is usually between 3 mm and 100 mm. Different thicknesses of plates can be customized according to specific usage requirements.
Q: What types of reactors are pipe line plate X52 suitable for?
A: Due to its high temperature and corrosion resistance, pipe line plate X52 are often used in the shells and pipelines of chemical reactors, heating furnaces, steam generators and other equipment.
Q: How difficult is the machining of pipe line plate X52?
A: Pipe line plate X52 require certain professional equipment and techniques when processing, especially when cutting and welding, it is necessary to pay attention to maintaining its excellent mechanical properties.
Q: Is pipe line plate X52 suitable for high sulfur environment?
A: Yes, pipe line plate X52 have strong resistance to sulfide corrosion and are suitable for use in environments with high sulfur content, such as pipelines and equipment in the oil refining process.
Q: How much does LX52 pipe line plate X52 weigh?
A: The density of pipe line plate X52 is usually around 7.85 g/cm³, and the specific weight depends on the thickness and size of the plate.
Q: Can LX52 pipe line plate X52 be recycled?
A: pipe line plate X52 is recyclable. As a kind of steel, it can be reused after proper treatment, which meets the requirements of green environmental protection.
